The brand new ASTER II Bluetooth® EXPERT for V2 GB is the younger brother of the well-known TITAN II Bluetooth®. Built-in Bluetooth 5.2 technology gives you direct access to ASTER II Bluetooth® settings, AEG telemetry, and the ability to use our smartwatch app, the tactical computer STATUS, and other future devices of the GATE Ecosystem. Today you can use ASTER II Bluetooth® with your AEG and tomorrow with a single solenoid HPA engine. This makes ASTER II Bluetooth®, right after TITAN II Bluetooth®, the most versatile ETU in the world replacing trigger contacts. ASTER II Bluetooth® raises the price-performance ratio by including an adjustable Quantum Trigger 2 and Bluetooth® 5.2 onboard. You get cutting-edge technologies at a reasonable price. Now, out of the box, you can set sensitivity from ludicrous touch through hair to full movement. Automatic pre-cocking, trigger sensitivity adjustment, Active Brake settings with top-class adaptive mode and the Binary Trigger are all available via Bluetooth® with the GCS app. Extended compatibility with brushless motors – ASTER II Bluetooth® is compatible with popular brushless motors even with a supply voltage of 11.1 V. ASTER’s smart fuse protects your AEG’s battery, motor, and the controller. This feature, along with the optical sensors, makes ASTER II Bluetooth® one of the most durable ETUs on the market. ASTER II Bluetooth® is not just a regular ETU/EFCS mosfet. It is a complex system that turns your AEG into future-proof advanced training equipment with built-in Bluetooth®. ASTER II Bluetooth® has a coating in the MIL-V-173C military specification, making it resistant to weather conditions.
Wiring – Rear
Regional Lock – UNLOCKED
Connect your ASTER II Bluetooth® with the GCS App and get total control of your AEG. Control your airsoft replica from your iOS, Android, macOS or Windows device using a built-in Bluetooth®. You no longer dongles such as USB-Link or Blu-Link. Get real-time data from your smartwatch (with Wear OS or watchOS) to reinforce your tactical decisions and get the advantage necessary to win and even use your smartwatch as remote trigger.
What distinguishes ASTER II Bluetooth® from the competition?
Extraordinary quality-to-price ratio:
- ASTER II Bluetooth® gives you total flexibility thanks to Bluetooth® 5.2 and compatibility both with AEG and HPA. You can update your firmware and get new options, connect additional accessories, check telemetry. Now – right off the shelf. At no extra charge.
- GCS app for iOS, Android, macOS or Windows
- GCS app for your smartwatch (Wear OS or watchOS) – real-time data like BB counters & remote trigger!
- Compatibility both with AEG and single solenoid HPA engines
- Hair-trigger – up to 35 trigger sensitivities for the first millimeter (0.04 in) of movement & up to 680 in the full range
- Configurable trigger reset (hysteresis)
- Top-notch automatic pre-cocking
- Free internet firmware updates
- ASTER II Bluetooth® is a part of the GATE Ecosystem
- Lowest in the market current consumption – deep sleep mode with only 140 uA current consumption prevents battery discharge
- Built-in voltage boost converter means trouble-free operation with weaker batteries and increases the switching efficiency
- 3.75 V ready – ASTER II Bluetooth® operates at very low voltage (even 1.2 V during the shot), which is important in high-tuned AEGs, where the voltage under load drops significantly
- Sensor supporting Infinite Torque-up, DSG, SSG, 19-tooth, and standard gears
- The possibility of using a mechanical trigger lock
- Extended compatibility with brushless motors – works perfect with all popular brushless motors even with 11.1 V batteries
- Multifunctional programmable I/O port – allows to connect bolt-catch sensor, magazine sensor, and more
What makes ASTER II Bluetooth® so special?
- Everything you need out-of-the-box

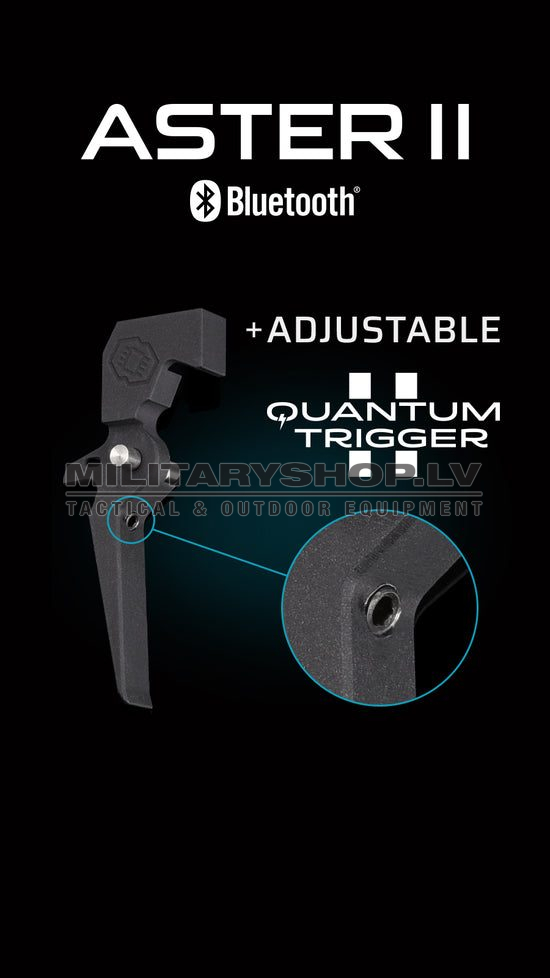

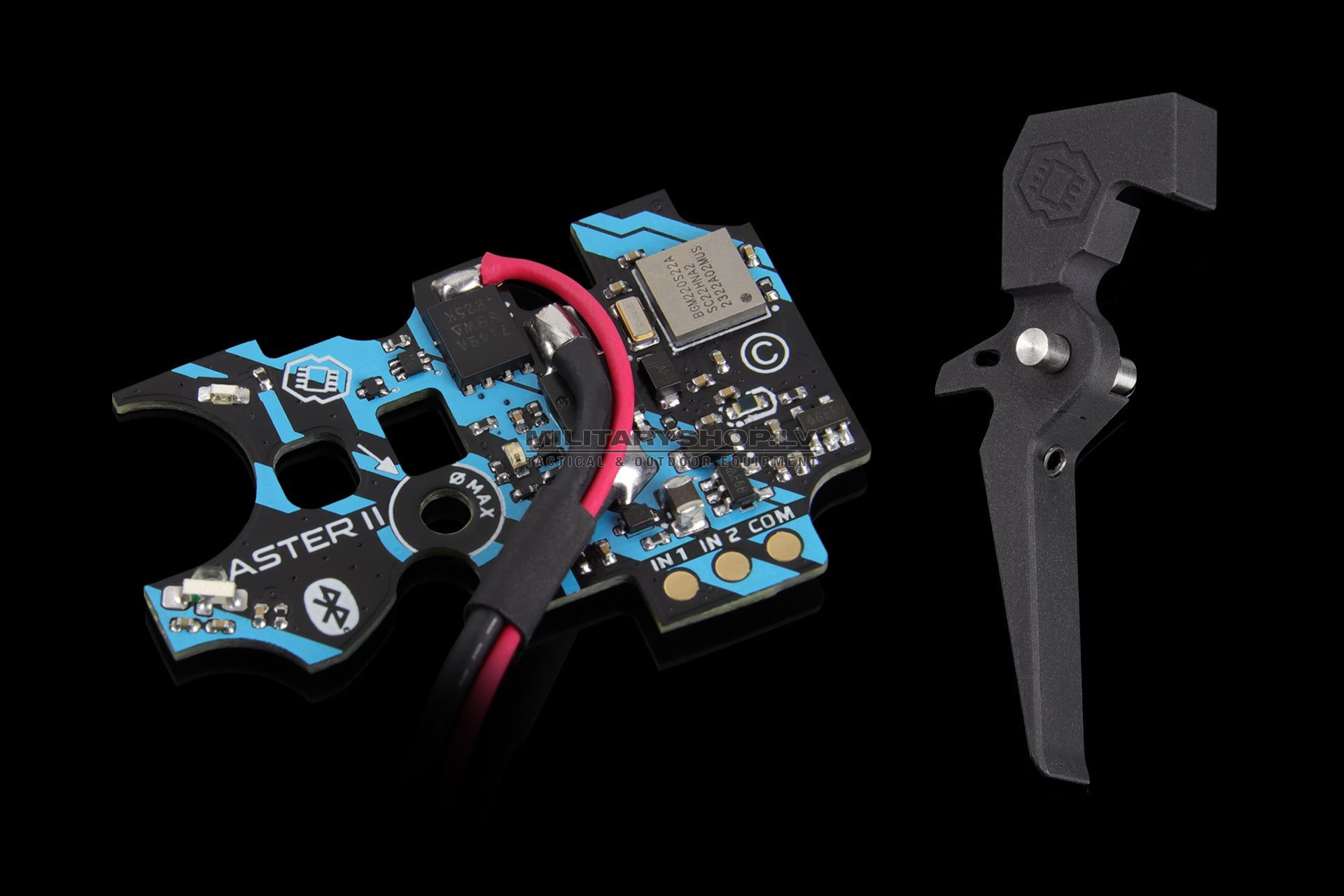

- Adjustable Quantum Trigger 2 included in the kit. Set trigger travel with screw and trigger sensitivity in the app.
- Built-in Bluetooth® 5.2
- Noise-resistant trigger detection algorithm
- Hair-trigger out-of-the-box. Even 35 trigger sensitivities for the first millimeter (0.04 in) of movement & up to 680 in the full range
- Additional protection against interferences thanks to multi-layer PCB with EMC shield
- Automatic Pre-Cocking: 0%, 20%, 40%, 60%, 80%, 100%
- Trigger sensitivity adjustment without any limitation – what’s more, you can now adjust Trigger Reset (hysteresis)
- Improved cycle detection
- Active brake adjustment: Adaptive / 1-100%
- 343 selector modes. All possible combination of: SAFE, SEMI, BURST, BINARY, BURST/AUTO, AUTO & SEMI RAMPING
- The GCS app enables firmware updates via the internet, which means instant application of improvements
- Both ASTER and ASTER II Bluetooth® are now compatible with QUANTUM TRIGGERs:
Quantum Trigger 1 (QT: 1A1, 1B1, 1C1, 1E1)
Quantum Trigger 2 (QT-2A1) – over-travel movement adjustable with screw
What is an ETU?
It is an Electronic Trigger Unit replacing trigger contacts and the cut-off lever, which takes control of your AEG.
What is the self-learning automatic pre-cocking?
- thanks to pre-cocking, you gain trigger reaction similar to real life
- automatically sets piston position
- easy-to-use – just set one of the 5 modes: 0%, 20%, 40%, 60%, 80%, 100%
- automatically adapts to the battery voltage and rate of fire
ASTER II Bluetooth®
Supply Voltage Range
3.75-12.9 V
Current Consumption
20 mA
Low Power Mode
140 µA
Dimensions (Length x Width x Height)
43.8 mm x 28.7 mm x 6.3 mm
Finished Product Weight
22.25 g
Operating Temperature Range
min. -15°C max. + 50°C
Relative Humidity
≤ 80%
